Key points
- A process flow diagram is the cheapest document in a supplier pack and the most informative — request it before you travel.
- Four things are missing from most diagrams: rework loops, subcontracted steps, water and air contact, and the post-treatment path.
- Every input needs an arrow. Processing aids, water, packaging and returned material all enter somewhere.
- A diagram with no control points marked has not been used for hazard analysis, whatever the folder says.
- Compare the diagram against what you see on the floor. The gap between them is the real audit finding.
If a supplier will send you one document before an audit, ask for the process flow diagram. It costs them nothing, it arrives in a day, and it will tell you more about how the operation actually thinks than any certificate.
A good one is a map of every step from incoming material to dispatch, with every input and output shown. A poor one is a row of boxes with arrows between them. The difference is visible in about thirty seconds.
A verified process flow diagram is not an optional artefact. In hazard-analysis practice it is the input to everything else: you cannot identify hazards at steps you have not drawn. Codex’s code of hygienic practice for low-moisture foods is built on that sequence, and it is the reference to cite when asking a supplier why the diagram matters. (Codex CXC 75-2015)
What a complete diagram contains
- every processing step in sequence, named specifically rather than generically;
- every input — raw material, water, steam, air, processing aids, packaging, rework;
- every output — product, waste, effluent, and material diverted for other uses;
- storage and holding steps, with conditions where they matter;
- transfer and conveying steps, which is where fragile products get damaged;
- control points marked, with what is controlled at each;
- the boundary of the site, so subcontracted steps are visible as leaving and returning.
The last one is easy to miss and important. If a step happens somewhere else, the diagram should show the material leaving and coming back.

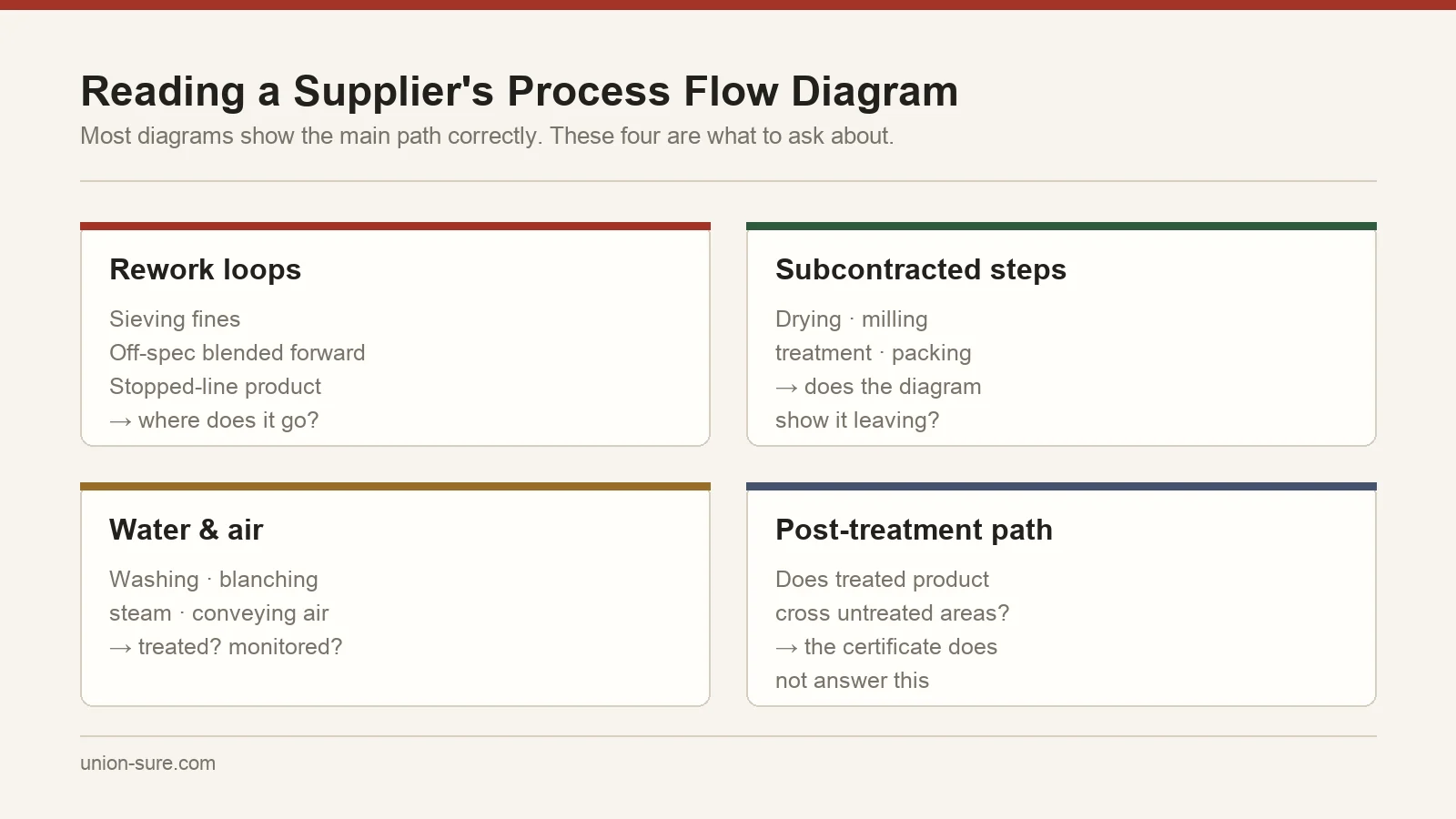

The four gaps to look for first
Rework loops
Material that re-enters the process later — sieving fines, off-specification blended forward, product recovered from a stopped line. This is nearly always absent from a first-draft diagram, and it is exactly where traceability and allergen control get complicated.
Ask directly: what happens to the fines, and where do they re-enter? The answer tells you both how the process really runs and how good the records are.
Subcontracted steps
Drying, milling, microbial treatment, packing and even testing are commonly outsourced. If a step leaves the site, the diagram should show the material leaving and returning, and your audit rights should reach the subcontractor.
A diagram that quietly draws an outsourced step as if it happened in-house is not usually deceptive — it is drawn from the product’s point of view — but it hides the site you most need to see.
Water and air
Water contacts product in washing, blanching, steam treatment and cleaning. Compressed air contacts it in conveying, drying and packing. Neither appears on most diagrams and both are contamination routes.
Where either contacts product, ask what treatment it receives and how that treatment is monitored. For a low-moisture operation, the introduction of water anywhere near a dry area is one of the highest-consequence events in the whole process.
The post-treatment path
Where a microbial reduction step exists, the most important thing on the diagram is what happens after it. If treated product travels back through the same area, on the same equipment, or is packed in a space that also handles untreated material, the treatment has bought far less than the certificate implies.
Trace the line physically from the treatment exit to the sealed bag. That walk answers more than the validation file does.
The diagram is also a supplier-verification record
Where you carry a verification obligation as an importer, the flow diagram is one of the cheapest pieces of evidence you can hold: it shows you evaluated the process, and it dates the version you evaluated. Keep the copy you reviewed with your approval file rather than only in the audit folder. {cite(‘fsvp_g’)}
Reference the applicable hygiene code when you ask for it, too. Codex’s general principles establish the flow diagram as a foundation of hazard analysis, and asking against a named document gets a better response than asking as a preference. {cite(‘hygiene’)}
Zoning is what the diagram implies but rarely shows
Most diagrams draw the process as a line and leave the building out. Ask for the flow to be overlaid on a site plan, or at least ask where the boundaries are between raw, treated and packed areas, and how people, equipment, waste and air cross them.
Three questions that surface most zoning problems:
- where does a person who has been in the raw area enter the treated area, and what changes?
- which equipment or utensils move between zones, and how are they controlled?
- which way does the air move between zones, and was that designed or is it incidental?
Reading the marked control points
A diagram with control points marked tells you hazard analysis has been done and the diagram was part of it. For each marked point, ask:
- what is the hazard being controlled;
- what is the limit, and where does it come from;
- how is it monitored, at what frequency, by whom;
- what is the corrective action when it deviates;
- where is the record for the last month.
The answers matter less than whether the person walking you through can give them without going to look. A diagram with no points marked is not necessarily a bad operation, but it means the diagram is documentation rather than a working tool.
A completeness checklist for the diagram
| Element | Present? |
|---|---|
| Every step named specifically, in sequence | |
| Every input arrow: raw material, water, air, aids, packaging | |
| Every output: product, waste, effluent, diverted material | |
| Rework loops drawn, with re-entry point | |
| Subcontracted steps shown leaving and returning | |
| Storage and holding steps, with conditions | |
| Control points marked, with what is controlled | |
| Post-treatment routing distinguishable from pre-treatment | |
| Revision number, date and approver |
Send it to the supplier before the audit with this list attached. What comes back — and how fast — is itself a finding.
Verify it on the floor
The diagram is a claim about the process. The audit is where you check it. Walk the flow in order, physically, and look for:
- steps on the floor that are not on the diagram;
- steps on the diagram that no longer happen;
- material moving in a direction the diagram does not show;
- people or equipment crossing between zones the diagram implies are separate;
- storage that appears in practice but not in the drawing.
The gap between the drawing and the floor is the finding. It is usually not deception — diagrams go stale — but a diagram that has not been updated since the line changed also tells you how the document system is maintained.
What to send back
After the visit, send the diagram back with your annotations and ask for a corrected version. It is a small request that produces a genuinely useful artefact: a shared, current map that both sides agree on and that the next audit can start from.
Frequently asked questions
Should the diagram show cleaning steps?
Cleaning is not a processing step in the product’s path, but wet cleaning in a dry environment is a significant hazard, so the diagram should at least indicate where wet cleaning occurs and how the area is released back to production afterwards.
Is a generic diagram acceptable if the supplier makes many products?
A family diagram can work if the products genuinely share a path, but it must show where individual products diverge. If your product has a step the others do not, that step needs to be visible.
What if a supplier will not send a diagram before an audit?
Treat it as information. The diagram is not confidential in the way a formulation is, and reluctance to share it usually means it does not exist in usable form — which is itself worth knowing before you book travel.
